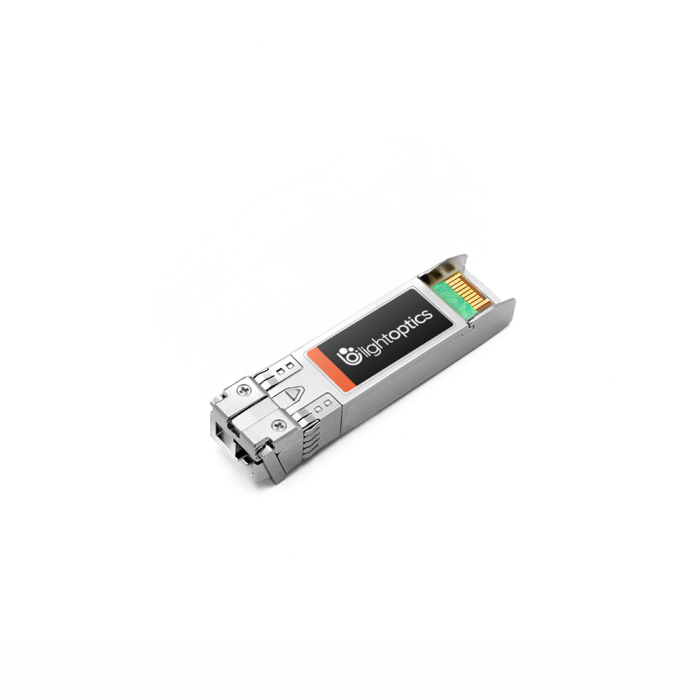

SFP28 BiDi SM Tx1270nm/ Rx1330nm 10km LC DUAL RATE 10/25GbE
25GBASE-BX LO-SFP28-2S3-10 SFP28 25GBase-BX SM 1270nm/ Rx1330nm 10km LC DUAL RATE 10/25GbE supports singlemode optical fiber, transmits data at speed up to 25Gbps Ethernet, maximum distance 10km. 1xLC/UPC simplex optical connector.
10 ANI de experiență
RETURURI UȘOARE de asemenea pentru B2B
Warranty 24 luni
SFP28 BiDi 10/25G dual rate 10km transceiver
The SFP28 10/25GBASE-BX module is designed for data transmission using one single-mode fibers (SMF). It transmits data at speeds of up to 25 Gbps Ethernet, over distances of up to 10km. The module is also backward compatible with the popular 10G Ethernet standard. It operates with laser TX 1270nm, Rx1330nm . The optical connector type is 1xLC/UPC simplex. The module is compatible with the SFP28 MSA standard.
We program the transceivers before shipment to work with any manufacturer of switch, converter, server card. If you did not find the manufacturer's name in the list, select "Other" option at the end of the list.
Example application of SFP28 BiDi / WDM optical module
Specifications - basic parameters
LightOptics LO-SFP28-2S3-10 transceiver - SFP28 BiDi SM Tx1270nm/ Rx1330nm 10km LC DUAL RATE 10/25GbE
- Transmission type: simplex - one SMF single-mode fibers
- Module speed: 10/25 Gbp/s - DUAL RATE
- Transmission distance: up to 10 km
- Wavelength: TX 1270 nm, Rx 1330nm
- Optical connector: 1 x LC/UPC
- Built-in diagnostics module: DDM/DOM
- Works with devices from leading network equipment manufacturers
- Compatible with: SFP28 MSA (Multi-Source Agreement) specification
Proven replacement for:
| Model | LO-SFP28-2S3-10 |
|---|---|
| Warranty | 24 luni |
| Tip de transmisie | BiDi (Simplex) |
| Tip de interfață | SFP28 |
| Rata de biți | 25G |
| Mediu (tip de fibră optică) | Fibră monomod (SMF) |
| Conector | 1xLC/UPC |
| Gama | 10 km |
| DDM/DOM | DDM |
| Temperatura de funcționare | 0 +70 C |
